Supermicro 2-Xeon 2029UZ-TN20R25M + X11DPU-Z 24-Drive 2U
Supermicro 2-Xeon 2029UZ-TN20R25M + X11DPU-Z 24-Drive 2U
Warranty:
3 Years - Supermicro
Dimensions HxWxD:
3.5" x 17.2" x 27.76"
Weight:
36 lbs (net), 72 lbs (gross)
Motherboard:
X11DPU-Z+ Included
CPU Support:
Dual Xeon Scalable, 70-205W TDP

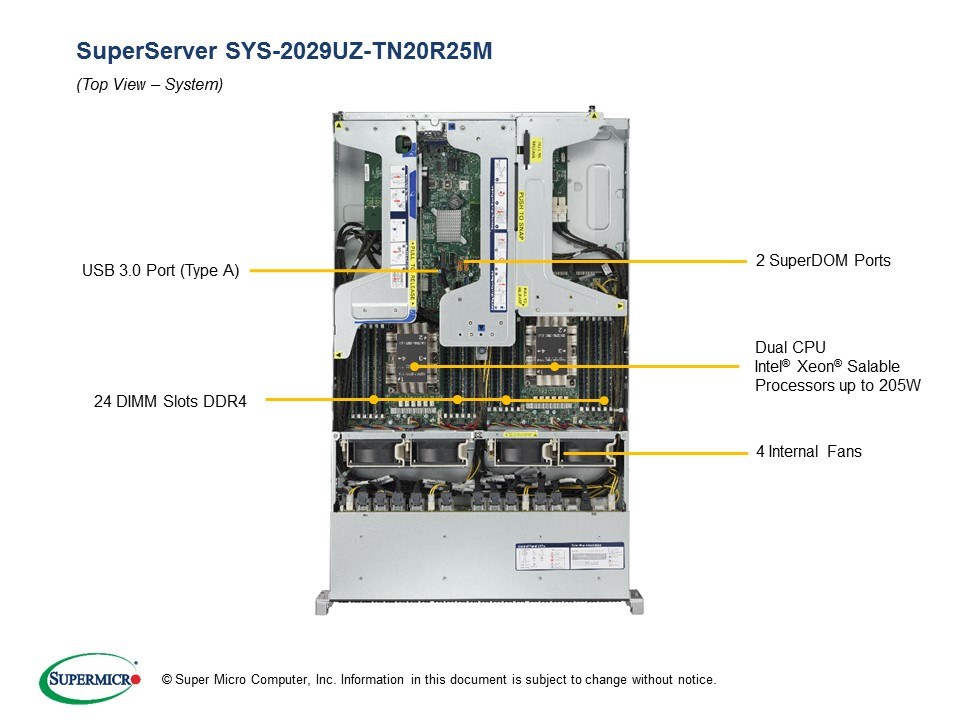

Memory Slots:
24
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 3TB ECC 3DS LRDIMM/RDIMM
Graphics:
1x VGA D-SUB, AST2500 BMC
Drive Support:

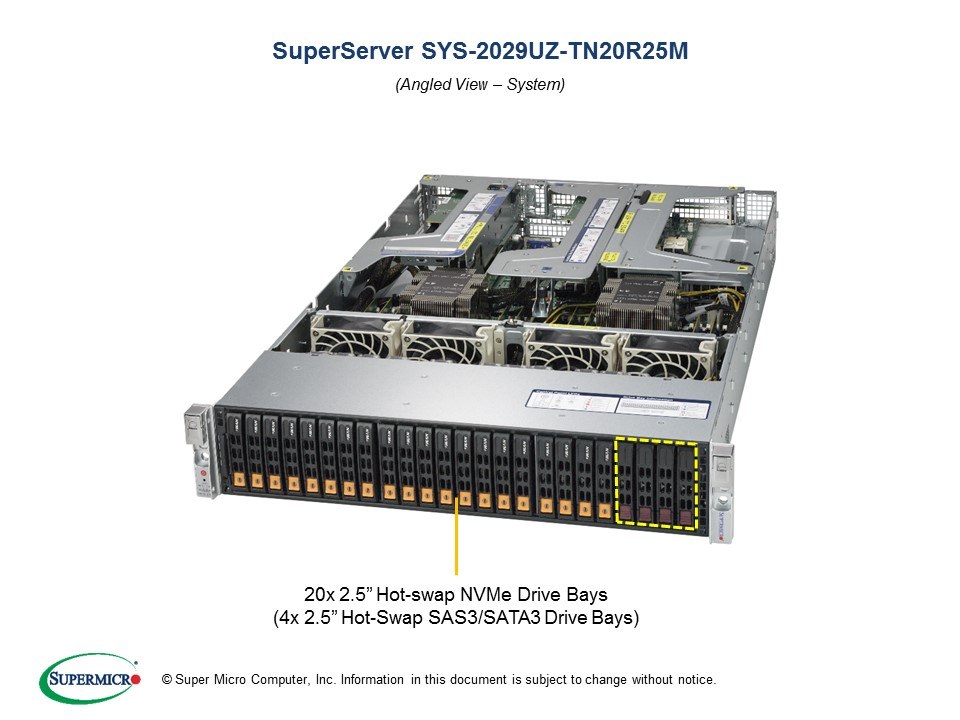

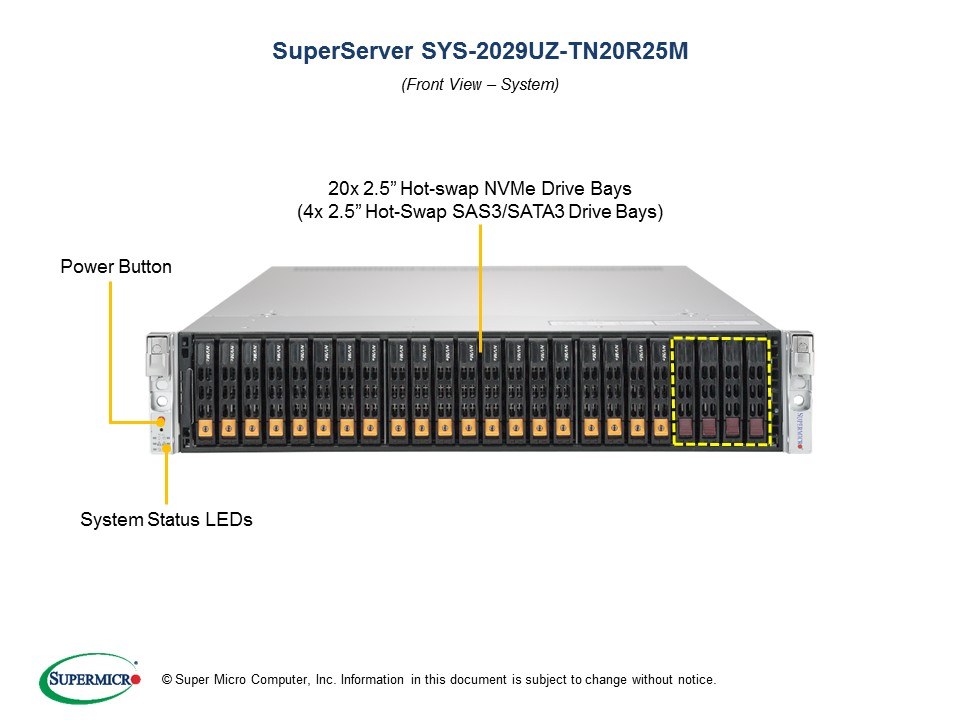

20x 2.5" NVMe, 4x 2.5" SATA/SAS3
M.2 Support:
1x M.2 NVMe
Expansion:
1x PCIe 3.0 x8 slots (LP)

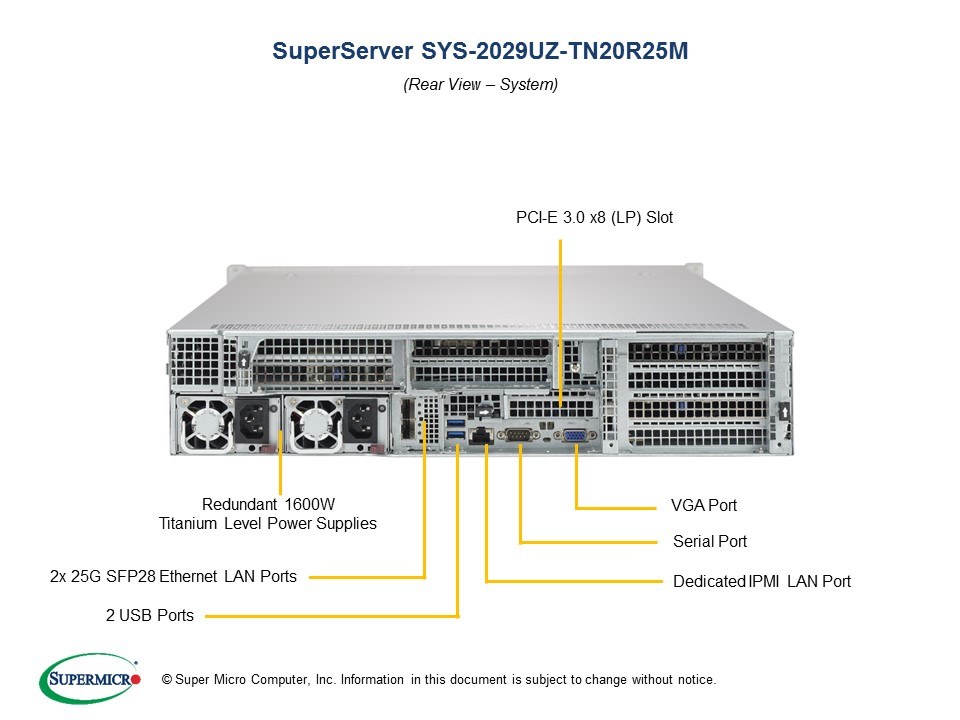

LAN Support:
2x 25GbE SFP28 via Mellanox AOC
Power Supply:
1600W Redundant PSU
Serial Port:
1x Serial header
Cooling:
4x Heavy duty 80mm
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 4 DIMMs and 10 NVMe).
Price: $3,390.00
