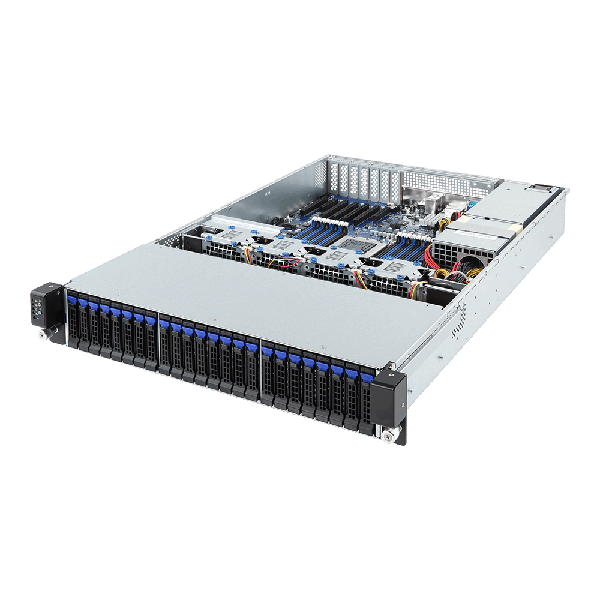

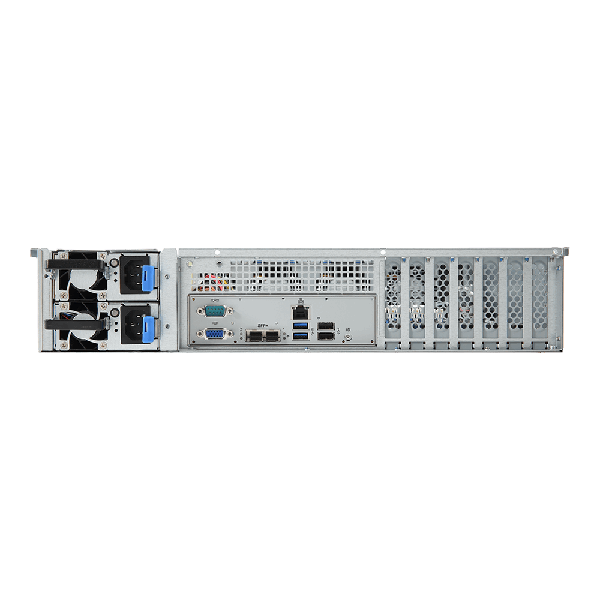

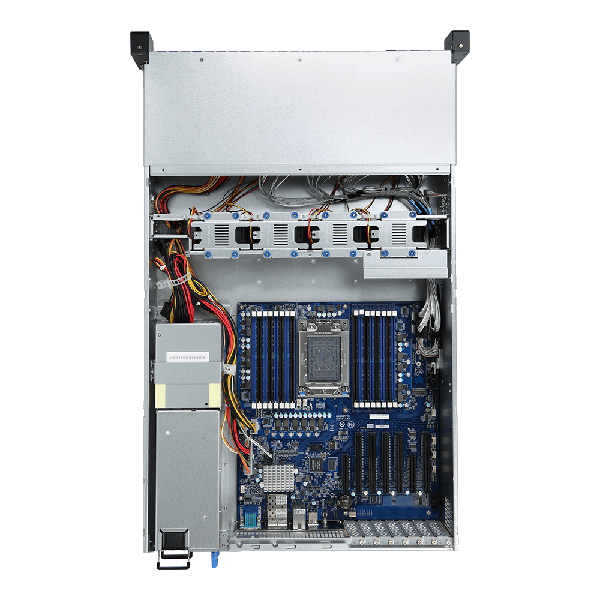

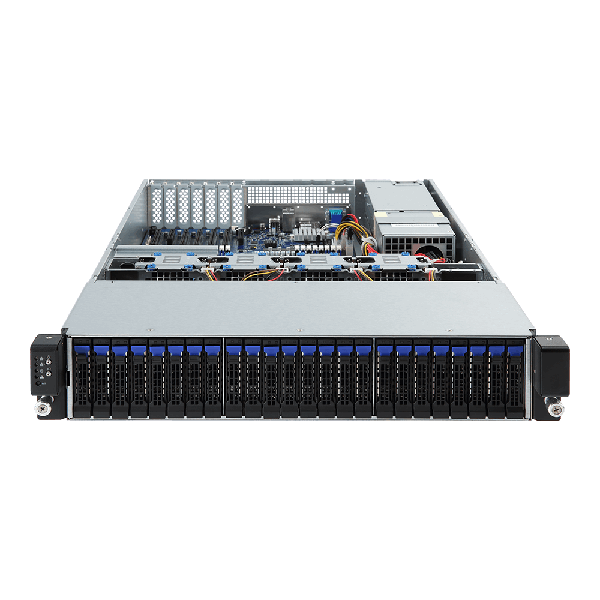

Gigabyte EPYC R271-Z31 SAS/SATA 16-Drive 2U
Gigabyte EPYC R271-Z31 SAS/SATA 16-Drive 2U
Warranty:
3 Years - Gigabyte
Dimensions (HxWxD):
3.4" x 16.9" x 27.9" / 87mm x 430mm x 710mm
Material:
Steel
Weight:
21 kg / 46.2 lbs (Net)

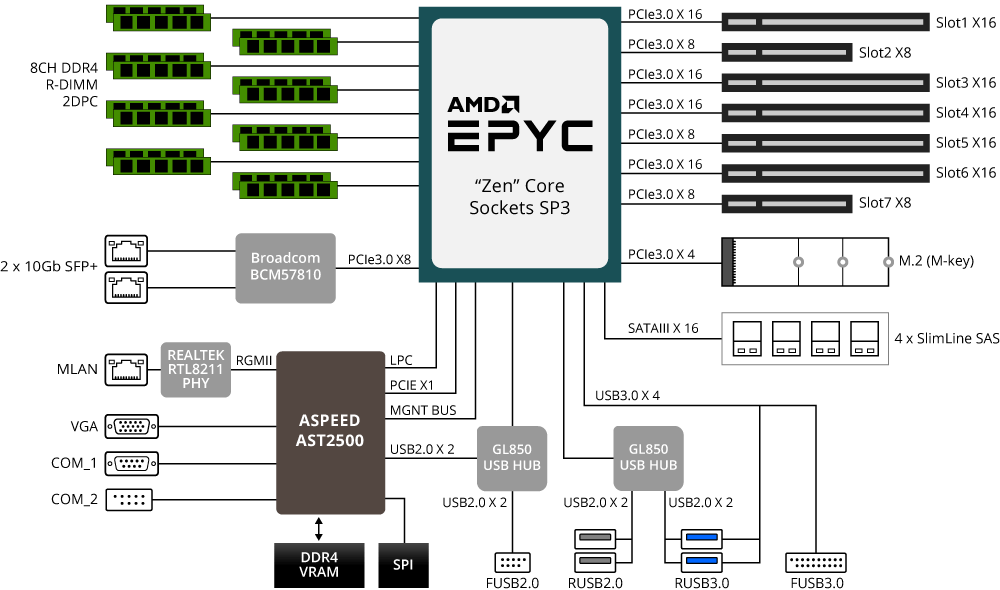

Motherboard:
MZ31-AR0
CPU Support:
EPYC 7000-series up to 180W
Memory Slots:
16
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 2TB
Expansion:
4x PCIe 3.0 x16, 3x PCIe 3.0 x8
Video:
Aspeed AST2500
SATA Support:
16x SATA
M.2 Support:
1x NGFF-2280/2260/2242
Network:
2x SFP+ 10Gb/s Broadcom® BCM 57810S, 1x Management LAN
Video Out:
1x VGA

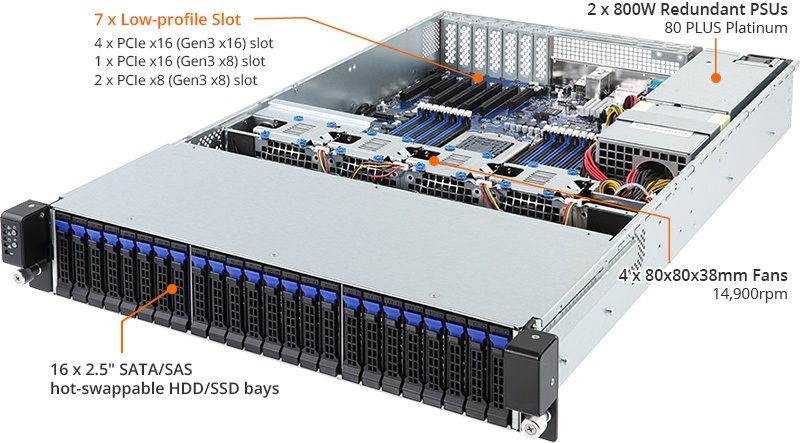

External Bays:
16 x 2.5" SATA/SAS (Default) *SAS Card is Required for SAS Support
USB External:
2x USB 3.0, 2x USB 2.0
USB Internal:
1x USB 3.0, 1x USB 2.0
COM Ports:
1x COM (Rear), 1x COM (Header)
TPM Support:
1x TPM header
Power Supply:
800W Redundant, 80 Plus Platinum
Cooling Fans:
4x 80mm
Price: $1,580.00
