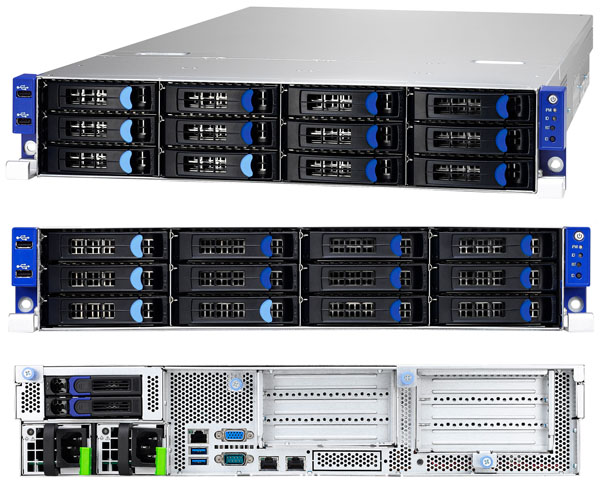

Tyan EPYC Transport SX TN70EB8026 B8026T70EV10E4HR 12-Drive 2U
Tyan EPYC Transport SX TN70EB8026 B8026T70EV10E4HR 12-Drive 2U
Warranty:
Tyan - 3 Years
Dimensions (HxWxD):
3.43" x 17.72" x 27.56"
Material:
Steel
Weight:
66 lbs (gross), 42 lbs (net)
Processor:
AMD EPYC 7000 Series
Memory Slots:
16
Memory Capacity:
Up to 1TB RDIMM/LRDIMM
M.2 Support:
2x PCIe/SATA (22110~2242)
External Bays:
8x 3.5" SATA3, 4x NVMe Hot-Swap
Internal Bays:
2x 2.5" SATA3 Hot-Swap
Expansion Slots:
4x PCIe x8 (FHHL), 2x PCIe x8 (HHHL), 1x PCIe OCP 2.0
Network:
2x GbE (BCM5720), 1x IPMI
Video:
Aspeed AST2500
USB Ports:
3x USB 3.0 (rear), 2x USB 2.0 (front)
COM Ports:
1x DB-9, 1x Header
Power Supply:
770 Watts, Redundant, Platinum
Cooling Fans:
8x 60mm
UPC Code:
635872045967
Price: $1,965.00
