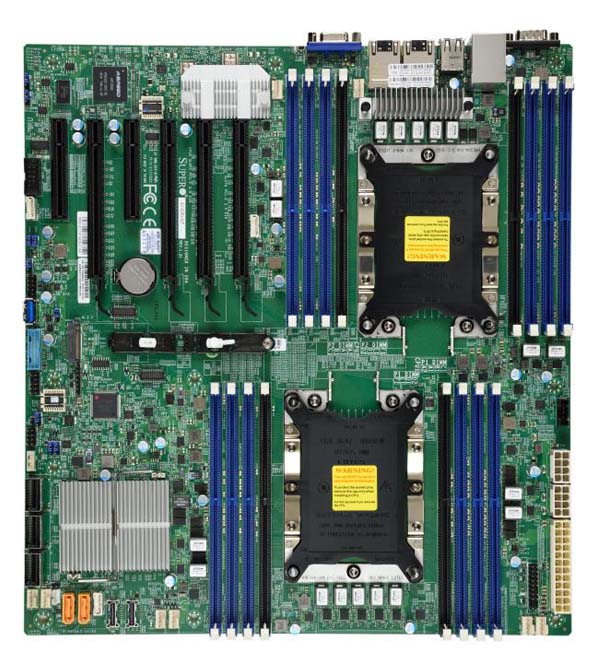

Supermicro X11DPi-NT C622 E-ATX
Supermicro X11DPi-NT C622 E-ATX
Warranty:
3 Years - Supermicro
Chipset:
Intel C622
Form Factor:
E-ATX, 12" x 13" (30.48cm x 33.02cm)
CPU Support:
Dual Scalable Xeon (70-205W TDP)
Memory Type:
DDR4, ECC 3DS LRDIMM, ECC LRDIMM, ECC RDIMM
Memory Slots:
16
Memory Speed:
Up to 2666MHz
Memory Capacity:
Max 2TB ECC 3DS LRDIMM / 1TB ECC RDIMM
Expansion Slots:
4x PCIe 3.0 x16, 2x PCIe 3.0 x8
Storage Support:
14x SATA3 Ports (2x SuperDOM Support)
RAID:
0,1,5,10 via Intel Chipset
NVMe Ports:
2x NVMe (PCIe 3.0 x4) Ports
M.2 Slots:
1x M.2 22110 Slot (NVMe PCIe 3.0 x4)
Network:
2x 10Gbase-T via Intel X557, 1x RJ45 IPMI
Video Out:
1x VGA (ASPEED AST2500)
USB Ports:
5x USB 3.0 (2x Rear + 2x via Header + 1x Type-A)
COM Ports:
2x COM Ports (1x Rear, 1x via Header)
TPM Support:
1x TPM Header
Price: $645.00
