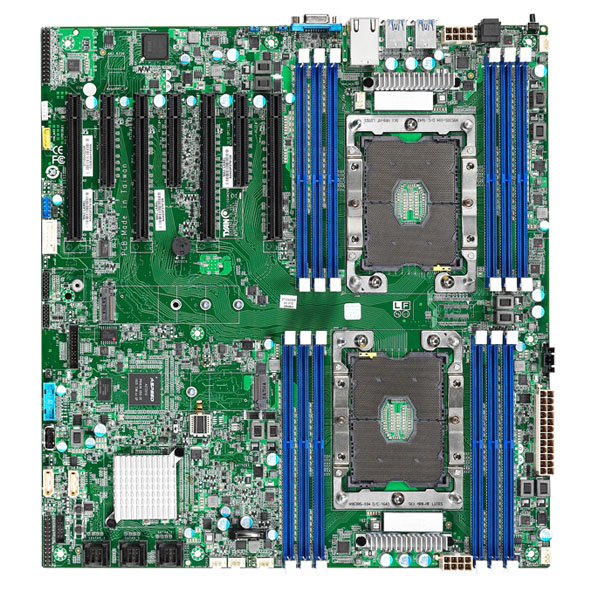

Tyan Tempest HX S7100 S7100GM2NR Server C621 SSI
Tyan Tempest HX S7100 S7100GM2NR Server C621 SSI
Warranty:
3 Years - Tyan
Form Factor:
12" x 13", SSI EEB
CPU Support:
Dual Xeon Scalable (up to 205 TDP)
Memory Type:
ECC DDR4, RDIMM / LRDIMM
Memory Slots:
12
Memory Capacity:
Up to 384GB RDIMM, 768GB LRDIMM, 1.5TB 3DS RDIMM/LRDIMM
Memory Speed:
Up to 2666 MHz
Video Out:
AST2500, D-SUB 15-pin
Network:
2x GbE (I350-AM2), 1x GbE IPMI
Expansion:
4x PCIe 3.0 x16, 3x PCIe 3.0 x8
SAS Ports:
3x Mini-SAS HD (12-ports)
SATA Ports:
2x SATA3 (SATADOM)
M.2 Ports:
2x 22110/2280 (by PCIe & SATA interface)
USB External:
4x USB 3.0
USB Internal:
1x USB 2.0 (header), 1x USB 2.0 (Type-A), 1x USB 3.0 (header)
Serial Ports:
1x 2x5 pin-header
Mfg Part Number:
S7100GM2NR (server)
Price: $550.00
