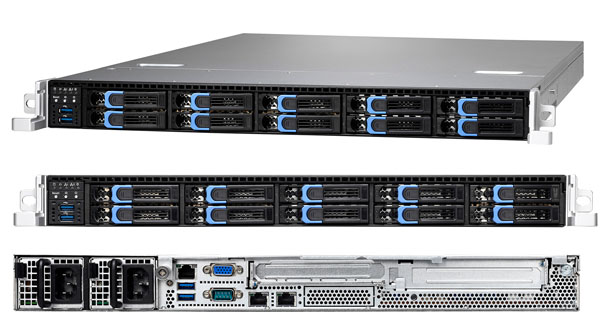

Tyan Transport SX EPYC GT62FB8026 B8026G62FV10HR-LE 1U
Tyan Transport SX EPYC GT62FB8026 B8026G62FV10HR-LE 1U
Warranty:
3 Years - Tyan
Dimensions (HxWxD):
1.72" x 17.2" x 24.6"
Material:
Steel
Weight:
20 kg / 44 lbs (gross), 10.5kg / 23.5 lbs (net)
Motherboard:

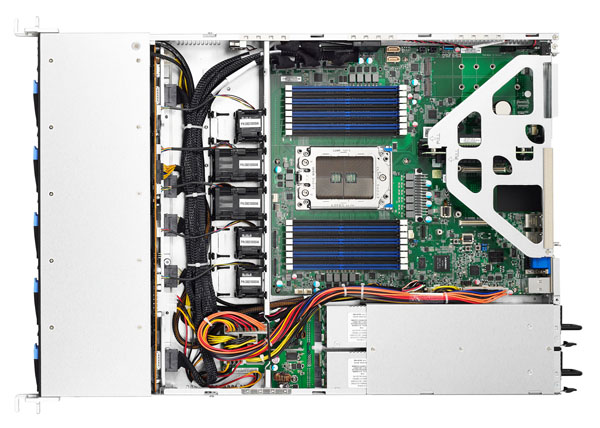

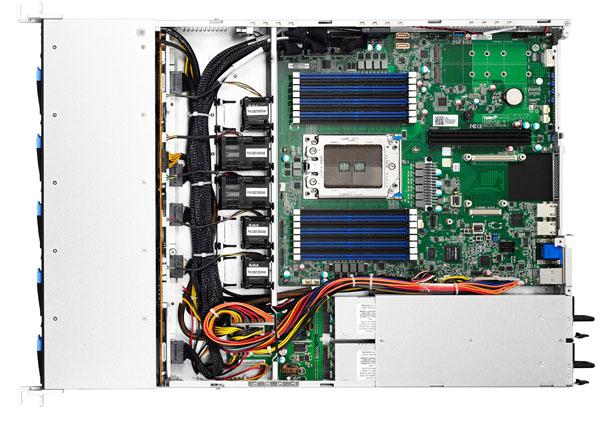

S8026GM2NR-LE (included)
Processor:
Single AMD EPYC 7000 Series Processor (Up to 180W)
Memory Slots:
16x DDR4 ECC RDIMM/LRDIMM 2666MHz
Memory Capacity:
Up to 1TB
SATA Support:
10x SATA3
M.2 Support:
2x NVMe M.2, 22110 Max Length
Expansion Slots:
2x PCIe 3.0 x16, 1x PCIe 3.0 x16 OCP 2.0 (conn.A+conn.B)
Network:
2x Broadcom BCM5720, 1x Realtek RTL8211E IPMI
Video Out:
1x AST2500, D-Sub 15-pin
External Bays:
10x 2.5" Hotswap
USB Ports:
2x USB 3.0 (at rear), 2x USB 3.0 (at front)
COM Ports:
1x DB-9 (COM1), 1x header (COM2)
Power Supply:
650 Watts, 1+1 Redundant, 80+ Platinum
Cooling Fans:
5x 40mm
Price: $1,420.00
