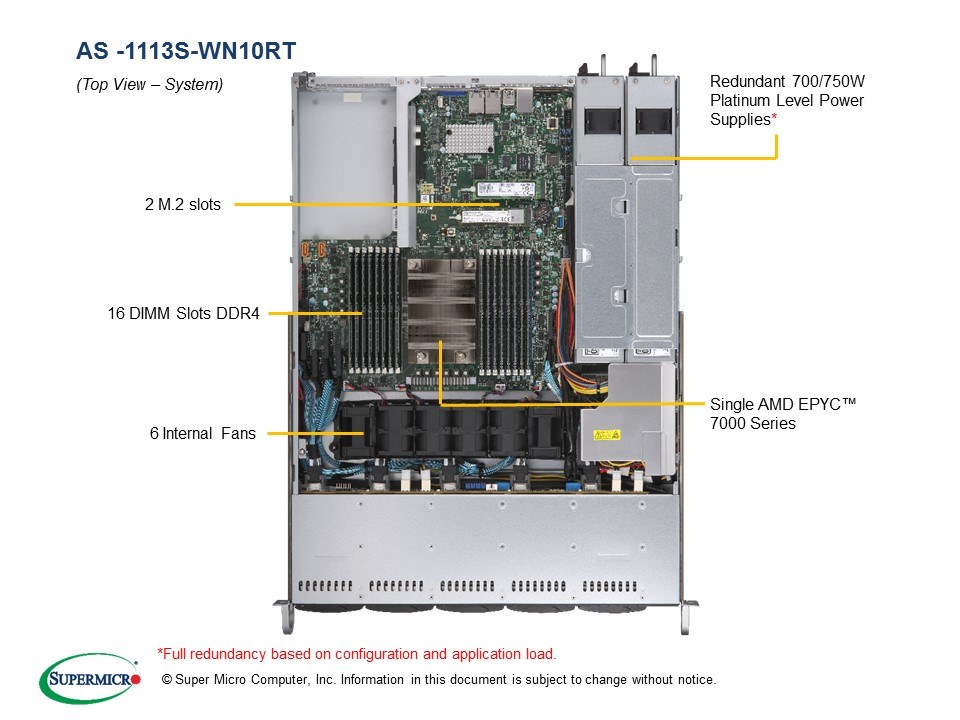

Supermicro EPYC 1113S-WN10RT + H11SSW-NT 10x Hot Swap NVMe 1U
Supermicro EPYC 1113S-WN10RT + H11SSW-NT 10x Hot Swap NVMe 1U
Warranty:
3 Years - Supermicro

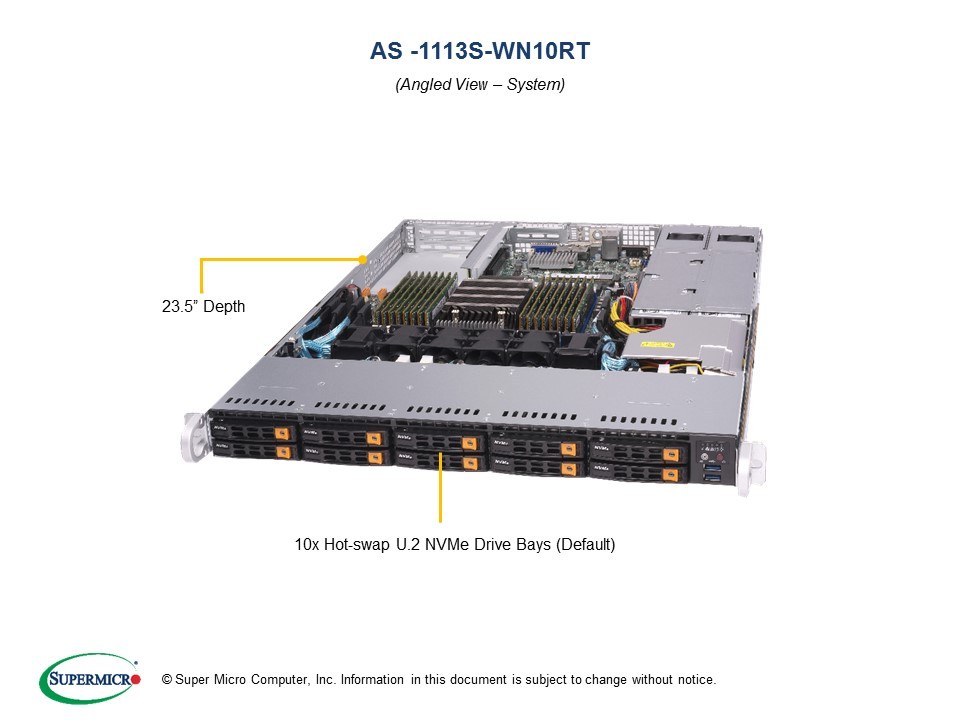

Dimensions (HxWxD):
1.7" x 17.2" x 23.5"
Material:
steel
Weight:
20 lbs (net), 33 lbs (gross)
Motherboard:
H11SSW-NT
Processor:
AMD EPYC 7000 Series (Up to 200W)
Graphics:
ASPEED AST2500 BMC
Memory Slots:
16
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 2TB
SATA Support:
4 (optional)
NVMe Support:
10
M.2 Support:
2x PCIe 3.0 x2, 2280~22110
SuperDOM:
2x Superdom/SATA DOM

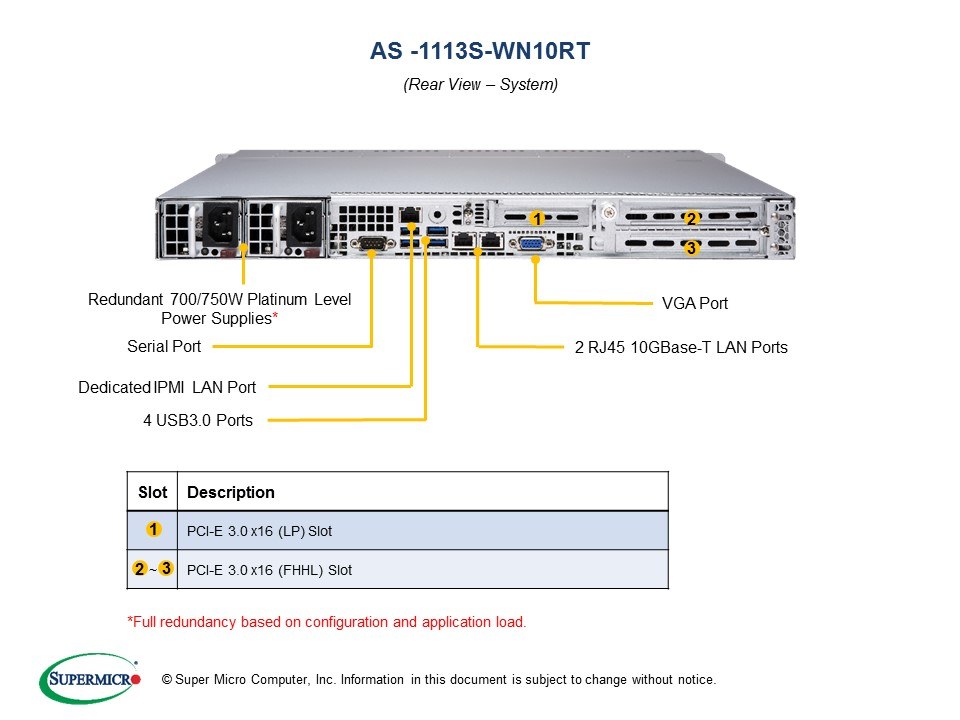

Expansion Slots:
2x PCIe 3.0 x16 (FH/HL), 1x PCI-E 3.0 x16 (LP)
Network:
2x 10GbBase-T (Broadcom BCM57416), 1x IPMI

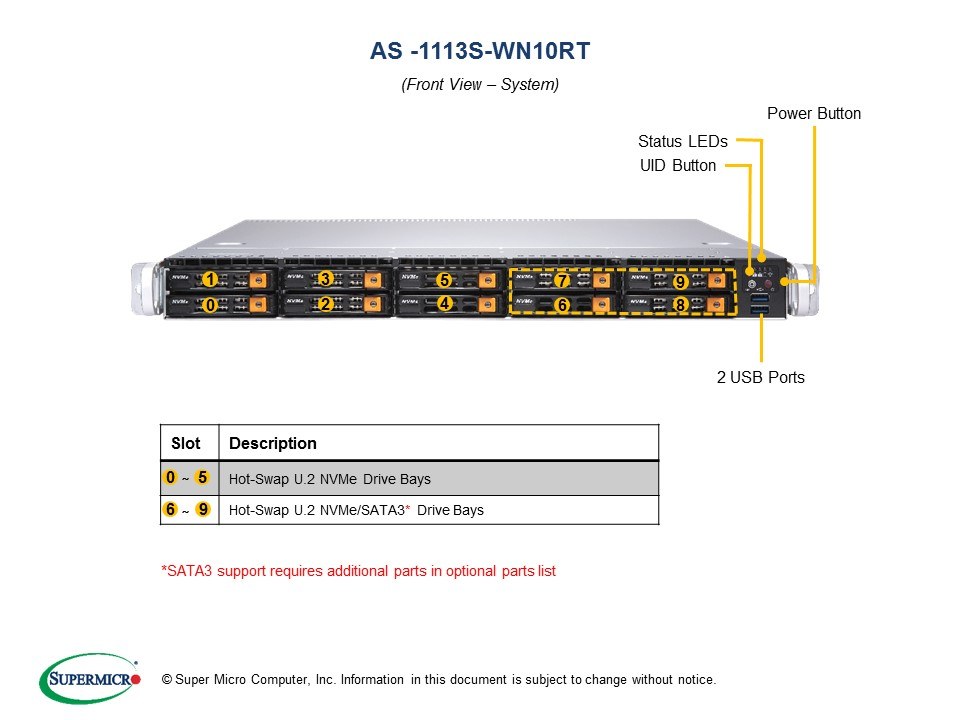

External Bays:
10x 2.5" U.2 NVMe
USB Ports:
7 USB 3.0 (4 rear + 2 front + 1 Type A)
TPM Support:
TPM 1.2 header
Power Supply:
700W/750W Redundant PMbus
Cooling Fans:
6x 40mm
Chassis:
CSE-116TS-R706WBP3
Due to the complexity of integration, this product is sold as a completely assembled system only (with 1 CPU, minimum 4 DIMMs, at least 1 NVMe).
Price: $1,700.00
