Supermicro 1029UZ-TN20R25M + X11DPU-Z+ 1U
Supermicro 1029UZ-TN20R25M + X11DPU-Z+ 1U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):

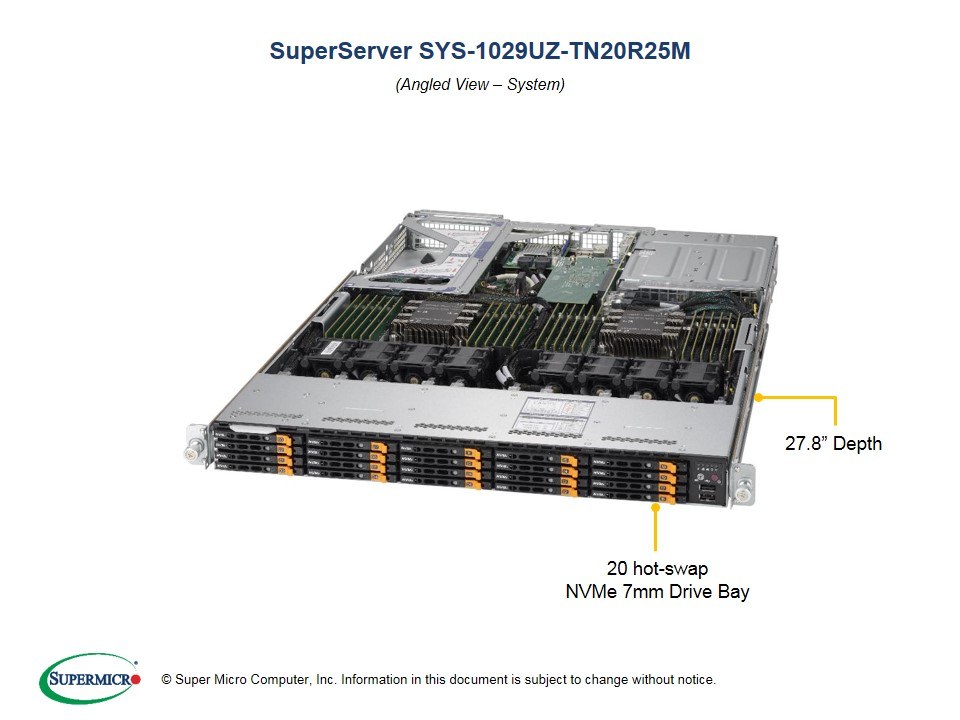

1.7" x 17.2" x 27.8"
Weight:
48 lbs (21.8 kg) Gross
Motherboard:

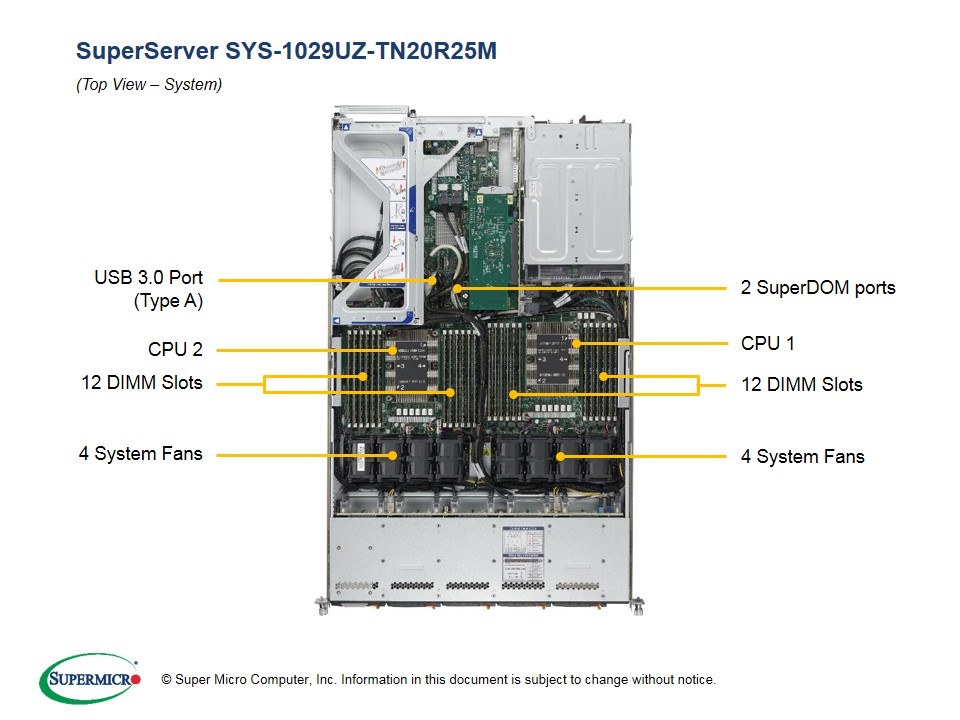

Supermicro X11DPU-Z+
Processor:
Dual Scalable Xeon 28-Core (70-205W TDP)
Graphics:
1x VGA (ASPEED AST2500 BMC)
Memory Type:
Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
Memory Slots:
24
Memory Speed:
Up to 2666MHz
Super DOM:
2
Expansion Slots:
2x PCIe 3.0 x8
External Bay:

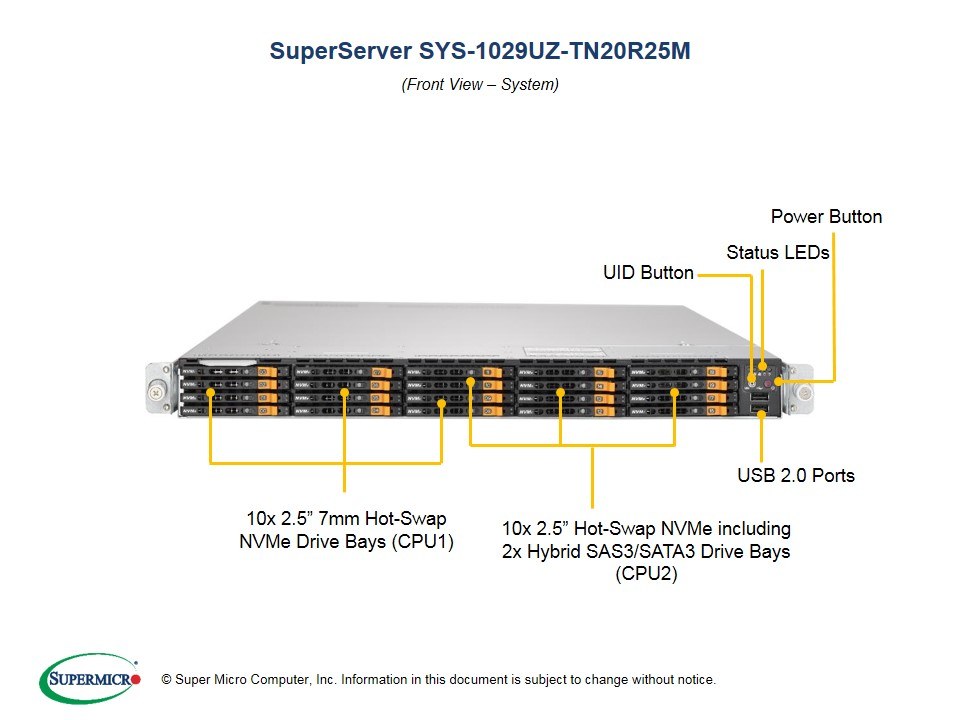

20x Hot-swap 2.5" 7mm NVMe (2x hybrid SAS/SATA/NVMe)
LAN:

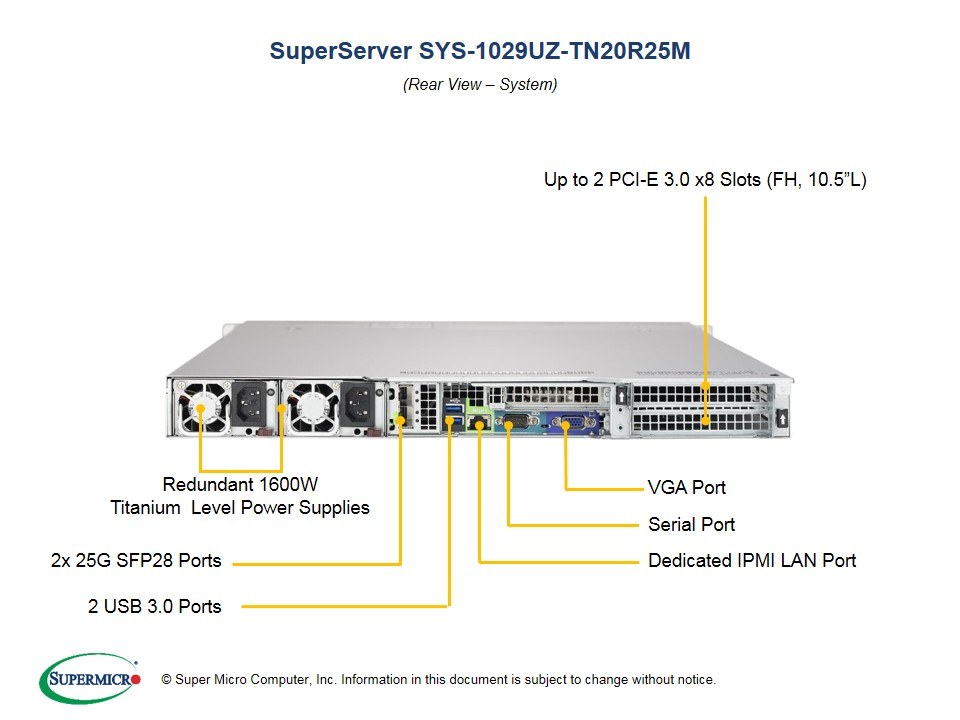

2x 25GbE SFP28 (Mellanox ConnectX-4 Lx), 1x RJ45 IPMI
USB Ports:
3x USB 3.0 (2x Rear, 1x Type-A), 2x USB 2.0 (Front)
COM Ports:
1x Serial Header
Power Supply:
1600W High-Efficiency PMBus 1.2, 80Plus Titanium
Cooling Fans:
8x heavy duty fans with optimal fan speed control
Price: $4,106.00
