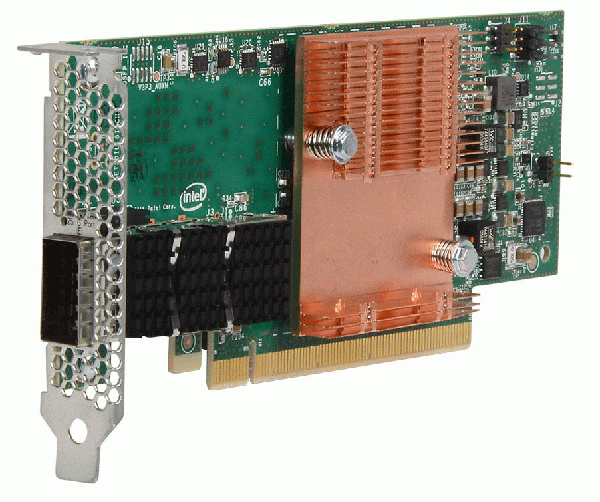

Intel Omni-Path Host Fabric 100HFA016LS 100Gbps
Intel Omni-Path Host Fabric 100HFA016LS 100Gbps
Warranty:
3 Years - Intel
Dimensions:
0.725" × 3.118"
Interface:
PCIe 3.0 x16
Connection:
QSFP28
Speed:
100 Gbps
Low Profile:
Yes
Power Consumption:
7.4 - 11.7W (copper), 10.6 - 14.9W (optical)
OS Support:
Red Hat, SUSE, CentOS, Scientific Linux
MFG Part:
100HFA016LS
Each HFI supports:
  • Multi-core scaling – support for up to 160 contexts
  • 16 Send DMA engines (M2IO usage)
  • Large MTU support (4KB, 8KB, 10KB) for reduced per-packet processing overheads.
  • Receive DMA engine arrival notification
  • Each HFI can map ~128 GB window at 64 byte granularity
  • Up to 8 virtual lanes for differentiated QoS
  • ASIC designed to scale up to 160M messages/second and 300M bidirectional messages/second
Price: $545.00
